UPVC & PVC Fittings

Comprehensive range of high-quality UPVC and CPVC piping systems designed for durability, chemical resistance, and long service life. Meeting international standards for water, drainage, and industrial applications.

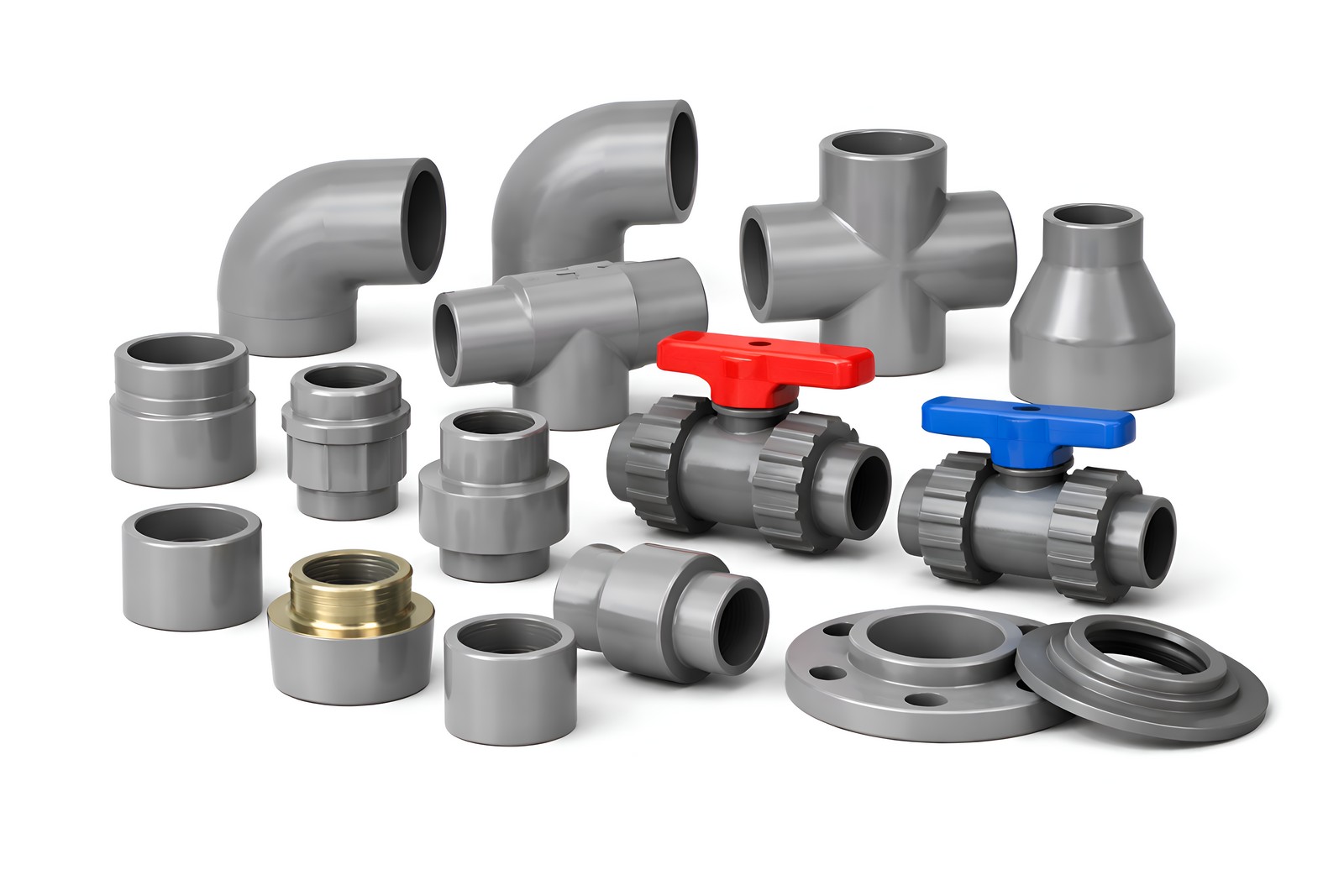

UPVC Pipe Fittings

Click to enlarge images

Fitting Type / Primary Application Design Characteristics & Material Specifics Key Applicable Standards & Specifications
SOLVENT CEMENT SOCKET FITTINGS (Pressure Systems, Permanent Joints)
  • Design: Socket/spigot design, Requires UPVC/CPVC specific cement
  • UPVC: Cold water systems (≤45°C)
  • CPVC: Hot & cold systems (≤93°C)
  • Types: Elbows, Tees, Couplings, Caps, Reducers
  • Colors: Gray (UPVC), Cream/Tan (CPVC)
 Dimensions:
  • ISO 2035 (Socket fittings for pressure pipes)
  • ASTM D2466 (Socket-type PVC fittings)
  • ASTM D2467 (Socket-type CPVC fittings)
Installation:
  • ASTM D2855 (Solvent cement joints)
THREADED FITTINGS (Equipment Connections, Transitions to Metal)
  • Design: NPT threads, Schedule 80+ wall thickness
  • Applications: Pump connections, valve installations, gauge ports
  • Types: Adapters, Nipples, Bushings, Unions
  • Note: Thread sealant required, not for primary pressure joints
 Dimensions:
  • ASTM D2464 (Threaded PVC fittings)
  • ASTM F437 (Threaded CPVC fittings)
Thread Standards:
  • ASME B1.20.1 (NPT threads)
FLANGE ADAPTERS & FLANGES (Transitions to Flanged Equipment)
  • Design: PVC/CPVC flange + backing ring, Bolt-on connections
  • Applications: Connections to pumps, tanks, valves, metal piping
  • Types: Slip-on flange, Blind flange, Adapter flange
  • Pressure Ratings: Per Schedule class
 Dimensions:
  • ASTM D2468 (Flanged PVC fittings)
  • ASTM F438 (Flanged CPVC fittings)
Gasketing:
  • ASTM F477 (Elastomeric seals)
UNION FITTINGS (Serviceable Connections, Maintenance Points)
  • Design: Three-piece design, Allows disassembly without cutting
  • Applications: Equipment isolation, meter installations, maintenance points
  • Types: Socket union, Threaded union, Combination
  • Materials: PVC/CPVC with EPDM/FKM seals
 Standards:
  • ASTM D2468 (Includes union designs)
  • ISO 1452-3 (Plastics piping systems)
MECHANICAL/COMPRESSION FITTINGS (No-Cement Connections, Temporary Systems)
  • Design: Gripper/seal mechanism, No solvent welding required
  • Applications: Temporary lines, repairs, difficult welding conditions
  • Types: Couplings, Repair Clamps, Transition Fittings
  • Seals: EPDM, Nitrile, Viton
 Standards:
  • ASTM F1970 (Mechanical couplings)
  • ISO 13844 (Elastomeric sealing rings)
  • EN 1452-3 (Mechanical joint fittings)
DWV (DRAIN-WASTE-VENT) FITTINGS (Gravity Flow Systems)
  • Design: Socket or hub design, For non-pressure applications
  • Applications: Sanitary drainage, vent systems, soil/waste
  • Types: Sanitary Tees, Wyes, P-Traps, Cleanouts, Bends
  • Materials: UPVC only (CPVC not typical)
 Dimensions:
  • ASTM D2665 (DWV fittings)
  • ASTM D3311 (DWV hubless fittings)
  • ISO 3633 (Soil/waste systems)
EXPANSION/COMPENSATION FITTINGS (Thermal Movement Accommodation)
  • Design: Slip-type design with seals, Accommodates expansion/contraction
  • Critical for CPVC: High thermal expansion coefficient
  • Types: Expansion Loops, Offsets, Slip Couplings
  • Applications: Long runs, temperature variations
 Standards:
  • ASTM F1974 (Metal insertion fittings)
Design per:
  • ASTM D2846 (CPVC hot water systems)
INJECTION-MOLDED FITTINGS (Standard Pressure Applications)
  • Design: Most common type, Consistent wall thickness
  • Sizes: Up to DN 110 (4") typically
  • Applications: General plumbing, irrigation, industrial
  • Quality: Smooth interior, uniform material distribution
 Standards:
  • ISO 1452-3 (Injection-molded fittings)
  • ASTM D2466/2467
Quality:
  • ISO 9853 (Injection-molded fittings test)
FABRICATED FITTINGS (Large/Custom Sizes, Special Angles)
  • Design: Made from pipe sections, Custom geometries
  • Applications: Large diameters, special angles, manifolds
  • Types: Mitered Elbows, Reducers, Special Tees
  • Fabrication: Solvent welding or butt fusion
 Fabrication Standards:
  • ASTM D2855 (Fabricated joints)
  • AWS G1.10M (Hot gas welding guide)
PRESSURE FITTINGS - SCHEDULE vs CLASS (Pressure Rating Systems)
  • Schedule System: Sch 40, 80, 120 (wall thickness based)
  • Class System: Class 125, 150, 200 (pressure rating based)
  • Applications: Water supply, industrial process, irrigation
  • Conversion: Charts needed for cross-reference
 Schedule Standards:
  • ASTM D2466 (Schedule 40/80)
Class Standards:
  • ASTM F437 (Class fittings)
Pressure Rating:
  • ASTM D2837 (Hydrostatic design basis)
