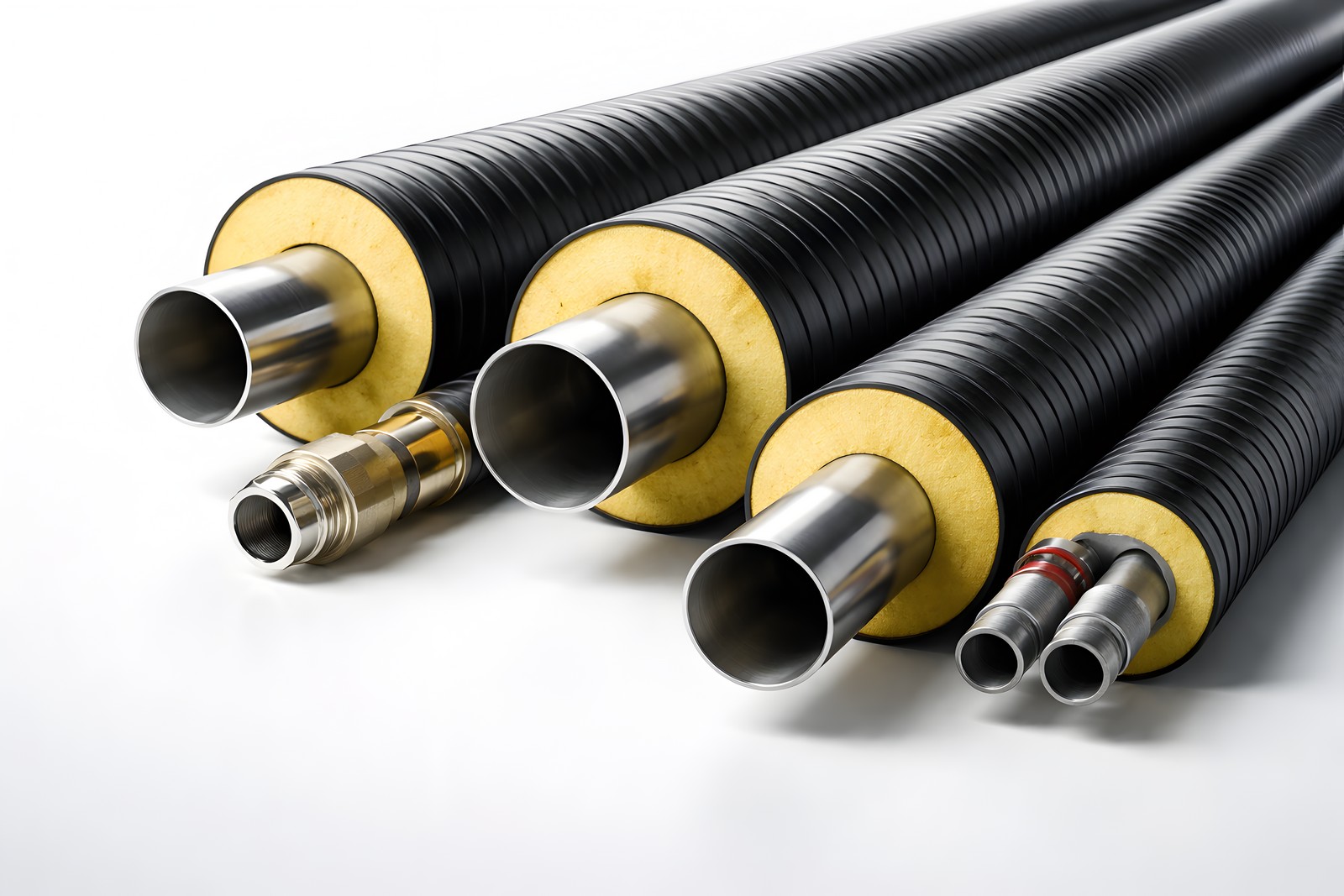

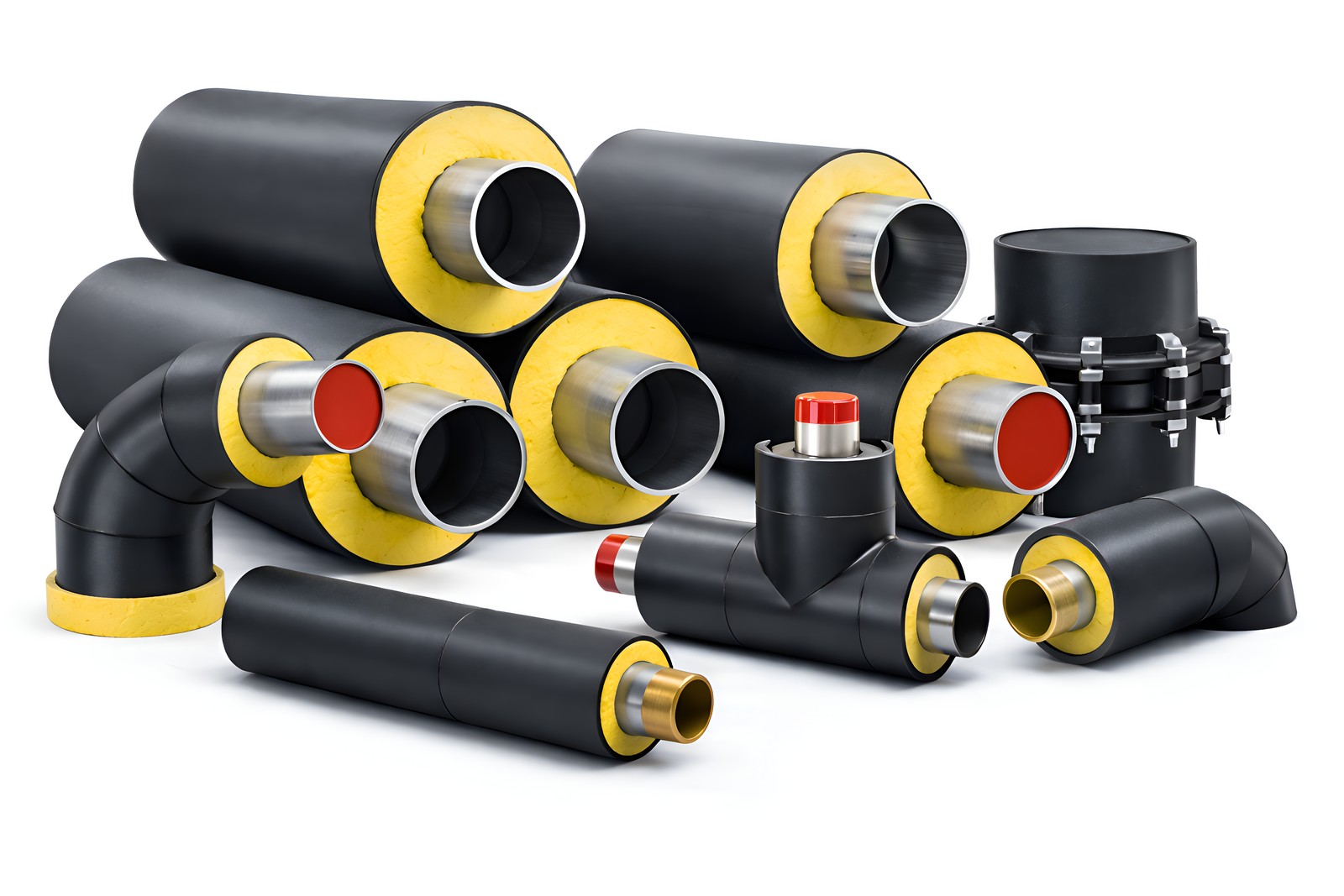

High-performance pre-insulated piping systems designed for optimal thermal efficiency and temperature maintenance. Covering district heating, cooling, and extreme industrial applications.
Click to enlarge images
| Application Sector / System Type | System Components & Key Features | Key Applicable Standards & Specifications |
|---|---|---|
| DISTRICT HEATING & COOLING NETWORKS (Urban heating networks, campus utilities, centralized cooling) |
Service Pipes: Carbon Steel (EN 10216, ASTM A106) or PEX/PE-RT. Insulation: Polyurethane (PUR) or PIR Foam. Jacket: HDPE (Yellow), Steel, or GRP. Key: Leak Detection Wire, Waterproofing, High Temp operation (up to 140°C). |
System Standards:
|
| DOMESTIC HOT WATER & HEATING (Apartment building risers, hotel plumbing, residential heating) |
Service Pipes: Copper, CPVC, PEX, SS 316L. Insulation: Flexible Elastomeric Foam (FEF), PUR, or Aerogel. Jacket: Aluminium/PVC laminate, HDPE. Key: Compact design, fire-rated assemblies, hygienic materials. |
System Standards:
|
| OIL & GAS - FLOW LINES & PIPELINES (Subsea flowlines, Arctic onshore pipelines, heated process lines) |
Pipe-in-Pipe (PIP): Carbon steel carrier, Vacuum/Powder insulation, Outer jacket pipe. Heated Systems: Electrical Trace integrated, Active heating. Key: Maintaining temperature for flow assurance, preventing hydrate/wax formation. |
System Standards:
|
| CRYOGENIC & LNG APPLICATIONS (LNG transfer lines, liquid nitrogen/oxygen, cold storage) |
Double-Walled Vacuum Insulated Pipe (VIP): SS304/316L inner/outer, High-vacuum, Multi-layer insulation. Key: Ultra-low thermal conductivity (λ < 0.005 W/m·K), Minimal boil-off. |
System Standards:
|
| INDUSTRIAL PROCESS PIPING (Chemical plants, refineries, power plants, food processing) |
Industrial Bundles: Multiple service pipes in shared insulation (steam, condensate, chemicals). Jacket: SS316, Aluminium, or PVC. Key: Custom configurations, high-temp insulation (calcium silicate, rockwool), corrosion protection. |
System Standards:
|
| GEOTHERMAL & SOLAR THERMAL (Ground source heat pump loops, solar hot water distribution) |
PEXa or PE-RT carrier pipe, Integrated PUR foam, HDPE outer jacket, Oxygen barrier layer. Key: Corrosion-free, flexible for direct burial, fused joints. |
System Standards:
|
| MARINE & OFFSHORE (Shipboard steam, fuel oil heating, ballast heating) |
Marine-Grade Bundles: GI/SS pipes, Rockwool/PUR insulation, Galvanized steel/SS jacketing. Key: Fire-rated (A60), vibration resistance, seawater corrosion protection. |
System Standards:
|
