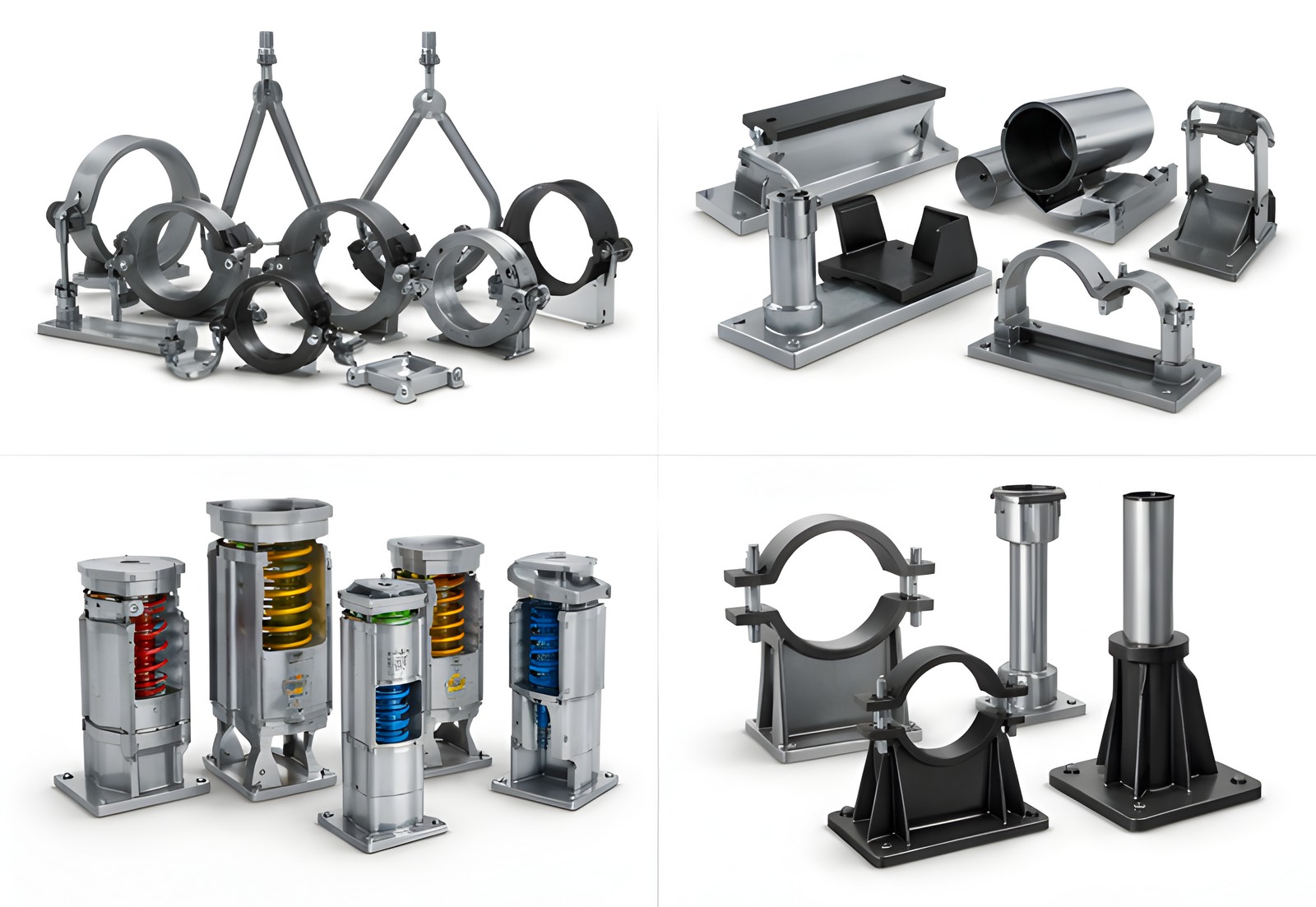

Comprehensive range of pipe support systems designed for rigid anchoring, thermal movement accommodation, and vibration isolation across various industrial applications.
Click to enlarge image
| Support Type / Primary Application | Design Characteristics & Load Capacity | Key Applicable Standards & Specifications |
|---|---|---|
| RIGID SUPPORTS (Fixed Points, Anchor Points) |
Design: Zero movement allowance, Heavy load capacity, Structural attachment Applications: Anchor points, equipment connections, seismic restraints Materials: Carbon steel, stainless steel, galvanized Load Range: Up to 50,000+ kg |
Design Standards:
|
| VARIABLE SPRING HANGERS (Vertical Thermal Movement) |
Design: Spring-loaded, Variable support force, Vertical movement compensation Applications: Hot piping systems, vertical movement accommodation Travel Range: 25-300mm standard Load Range: 50-50,000 kg |
Spring Standards:
|
| CONSTANT SUPPORT HANGERS (Large Vertical Movement) |
Design: Constant support force, Large travel range, Cam/lever mechanism Applications: Large thermal movement, critical piping, power plants Travel Range: Up to 600mm+ Load Range: 100-50,000 kg |
Standards:
|
| GUIDES & RESTRAINTS (Lateral Movement Control) |
Design: Lateral restraint, Allow axial movement, Prevent pipe buckling Applications: Long straight runs, directional control, seismic zones Types: Wear pads, U-bolts, guide clamps Clearance: Typically 1.5mm per side |
Design Standards:
|
| SLIDING SUPPORTS (Horizontal Thermal Movement) |
Design: Low friction surfaces, Horizontal movement allowance, Wear protection Applications: Horizontal pipe runs, thermal expansion accommodation Materials: PTFE, graphite, stainless steel slides Friction Coefficient: 0.1-0.3 typical |
Friction Standards:
|
| ROD HANGERS & CLAMPS (General Pipe Support) |
Design: Adjustable rods, Clevis attachments, Standard components Applications: General piping support, HVAC systems, plumbing Materials: Threaded rod, steel clamps, galvanized Sizes: M8 to M36 rods, various clamp sizes |
Component Standards:
|
| PIPE SHOES & SADDLES (Load Distribution) |
Design: Load spreading, Insulation protection, Vibration damping Applications: Heavy pipes, insulated pipes, equipment connections Types: Standard shoes, insulation shoes, wear plates Materials: Carbon steel with insulation inserts |
Design Standards:
|
| VIBRATION ISOLATORS (Noise & Vibration Control) |
Design: Spring/damping elements, Vibration isolation, Noise reduction Applications: Pump connections, equipment piping, sensitive areas Types: Spring isolators, rubber isolators, inertia bases Isolation Efficiency: 85-95% typical |
Vibration Standards:
|
| SEISMIC BRACING SYSTEMS (Earthquake Resistance) |
Design: Seismic restraints, Dynamic load capacity, Building code compliance Applications: Seismic zones, critical facilities, safety systems Components: Braces, struts, sway braces Codes: IBC, ASCE 7, OSHPD compliance |
Seismic Standards:
|
| CARBON STEEL SUPPORTS (General Service Applications) |
Design: Standard material, Cost-effective, Paint/galvanized finish Applications: Non-corrosive environments, indoor applications Standards: ASTM A36, A500, galvanized per ASTM A123 Temperature: Up to 400°C |
Material Standards:
|
| STAINLESS STEEL SUPPORTS (Corrosive Environments) |
Design: Corrosion resistance, Clean environments, High temperature Applications: Chemical plants, food processing, marine, outdoor Grades: 304, 316, 316L stainless steel Finish: Mill finish, polished, electropolished |
Material Standards:
|
| PLASTIC/COMPOSITE SUPPORTS (Non-Metallic Piping) |
Design: Non-corrosive, Lightweight, Electrically insulating Applications: Chemical piping, HDPE/GRP pipes, electrolytic areas Materials: PP, PVDF, GRP, coated metals Features: No galvanic corrosion |
Plastic Standards:
|
