Centrifugal Pumps & Solutions

Comprehensive range of high-efficiency centrifugal pumps engineered for water supply, industrial processes, and critical applications worldwide.

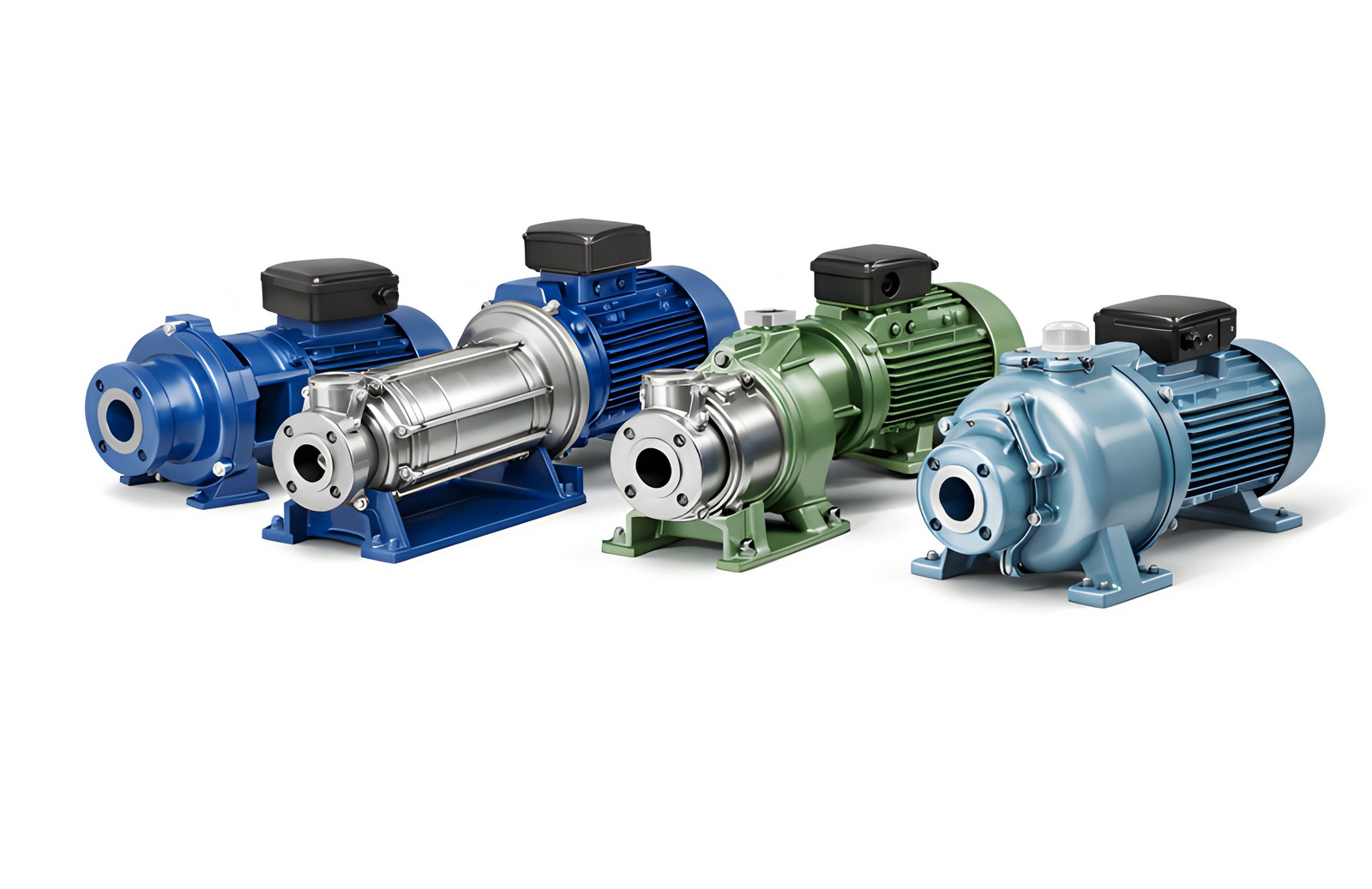

Centrifugal Pumps

Click to enlarge image

Pump Type / Primary Application	Design Characteristics & Technical Specifications	Key Applicable Standards & Certifications
END-SUCTION SINGLE-STAGE PUMPS (General Industrial, Water Supply, HVAC)	Design: Horizontal/vertical design, Overhung impeller, Closed/open impeller options Applications: Water transfer, irrigation, cooling systems, general process Materials: Cast iron, bronze, stainless steel, alloy Pressure: Up to 150m head, flows to 1000 m³/h	Design/Performance: ISO 5199 (Technical specifications) EN 733 (End-suction centrifugal pumps) ANSI/HI 1.1-1.6 (Centrifugal pump standards) Testing: ISO 9906 (Acceptance tests - Grade 1/2/3)
MULTI-STAGE HORIZONTAL PUMPS (High Pressure Systems, Boiler Feed, RO)	Design: Multiple impellers in series, Diffuser/volute design, Axial/radial split Applications: Boiler feed, reverse osmosis, pressure boosting, washdown Materials: Cast iron, SS304/316, bronze, CD4MCu Pressure: Up to 2000m head	Design: ISO 9908 (Technical specs - multi-stage) API 610 (Centrifugal pumps - petrochemical) ISO 13709 (Identical to API 610) Materials: ASTM A743 (Corrosion-resistant castings)
VERTICAL MULTI-STAGE PUMPS (Booster Systems, Limited Space, Deep Wells)	Design: Vertical column design, Stacked impellers, Bowl/diffuser assembly Applications: Building pressure boosting, water supply, irrigation, industrial Materials: Cast iron, bronze, stainless steel Features: No floor space, submerged or surface mounted	Standards: ISO 9908 ANSI/HI 2.1-2.5 (Vertical pumps) EN 12723 (Vertical in-line pumps) Well Pumps: ANSI/HI 11.6 (Vertical turbine pumps)
DOUBLE-SUCTION SINGLE-STAGE PUMPS (Large Volume Water Applications, Low NPSH)	Design: Impeller between bearings, Axial inflow both sides, Split-case design Applications: Water treatment plants, cooling water, large HVAC, irrigation Materials: Cast iron, bronze-fitted, stainless steel Capacity: 100-50,000 m³/h	Design: ISO 5199 ANSI/HI 1.1-1.6 AWWA E101 (Vertical turbine pumps - water) Efficiency: EU 547/2012 (Ecodesign requirements)
SELF-PRIMING CENTRIFUGAL PUMPS (Suction Lift Applications, Portable Use)	Design: Integrated priming chamber, Recirculation design, Automatic priming Applications: Construction, dewatering, transfer from sumps, marine Materials: Cast iron, aluminum, stainless steel Features: Handles entrained air, dry-run capability	Standards: ISO 9905 (Technical specifications) ANSI/HI 1.1-1.6 EN 12162 (Liquid pumps - safety requirements)
CHEMICAL PROCESS PUMPS (Corrosive, Abrasive, Hazardous Fluids)	Design: Back pull-out design, ANSI/ISO dimensions, Sealless options Applications: Chemical processing, pharmaceuticals, petrochemical, acid transfer Materials: SS316, Alloy 20, Hastelloy, titanium, lined pumps Standards: ANSI B73.1/ISO 2858	Design: ANSI/ASME B73.1 (Horizontal chemical pumps) ANSI/ASME B73.2 (Vertical chemical pumps) ISO 2858 (Dimensions) Materials: NACE MR0175 (Sour service)
API 610 PUMPS (Refinery, Petrochemical, Critical Service)	Design: Heavy-duty construction, Centerline support, Critical service design Applications: Refinery process, pipeline, LNG, high-temperature service Materials: Per API 610 Appendix H, Special alloys Classes: BB1, BB2, BB3, BB4, BB5	Primary Standard: API 610 (Centrifugal Pumps for Petroleum Petrochemical) ISO 13709 (Identical) Auxiliary Standards: API 682 (Shaft sealing systems) API 674 (Positive displacement pumps)
SEALLESS MAGNETIC DRIVE PUMPS (Zero Leakage, Hazardous Fluid Handling)	Design: Containment shell design, Magnetic coupling, No mechanical seal Applications: Toxic, volatile, expensive fluids, semiconductor Materials: Stainless steel, alloy C, PTFE, ceramic magnets Features: Leak-free, reduced maintenance	Standards: ISO 15783 (Sealless rotodynamic pumps) ANSI/HI 5.1-5.6 (Sealless pumps) ASME B73.3 (Sealless horizontal pumps)
SLURRY & SOLIDS HANDLING PUMPS (Mining, Wastewater, Abrasive Slurries)	Design: Heavy wear parts, Large passages, Replaceable liners/impellers Applications: Mining slurry, wastewater sludge, dredging, ash handling Materials: High-chrome iron, rubber-lined, Ni-hard, urethane Design: Centrifugal, recessed impeller, vortex	Standards: ISO 13709 (Heavy-duty) ANSI/HI 12.1-12.6 (Rotodynamic slurry pumps) Wear Standards: ASTM A532 (Abrasion-resistant cast iron)
HIGH-TEMPERATURE PUMPS (Hot Oil, Molten Salt, Thermal Fluid)	Design: Cooled bearings/seals, Thermal expansion design, Hot alignment Applications: Thermal oil systems, molten salt, high-temperature process Materials: Carbon steel, alloy steels, special designs Temperature: Up to 450°C continuous	Design: API 610 (High-temperature services) ISO 13709 Materials: ASTM A217 (Alloy steel castings) ASTM A182 (Forged alloy fittings)
MARINE & OFFSHORE PUMPS (Seawater, Ballast, Firefighting, Offshore)	Design: Corrosion-resistant materials, Dual-certification, Marine-specific designs Applications: Seawater cooling, ballast transfer, firefighting, bilge Materials: Bronze, nickel-aluminum bronze, super duplex Certifications: ABS, DNV, LR, BV	Marine Standards: IMO MSC.1/Circ.1388 (Pump fire safety) SOLAS (Safety of Life at Sea) Class Societies: ABS, DNV, LR, BV rules
SANITARY/HYGIENIC PUMPS (Food, Beverage, Pharmaceutical, Cosmetic)	Design: Polished surfaces, CIP/SIP capable, Quick-disconnect, Dead-leg free Applications: Food processing, dairy, pharmaceutical, cosmetic Materials: 316L SS, electropolished, FDA-approved elastomers Finishes: Ra ≤ 0.8 µm	Sanitary Standards: 3-A Sanitary Standards (78-00 etc.) EHEDG (European Hygienic Design) ASME BPE (Bioprocessing equipment) FDA: 21 CFR (Food contact materials)
